| Part number: | PMC-1001T1520 |

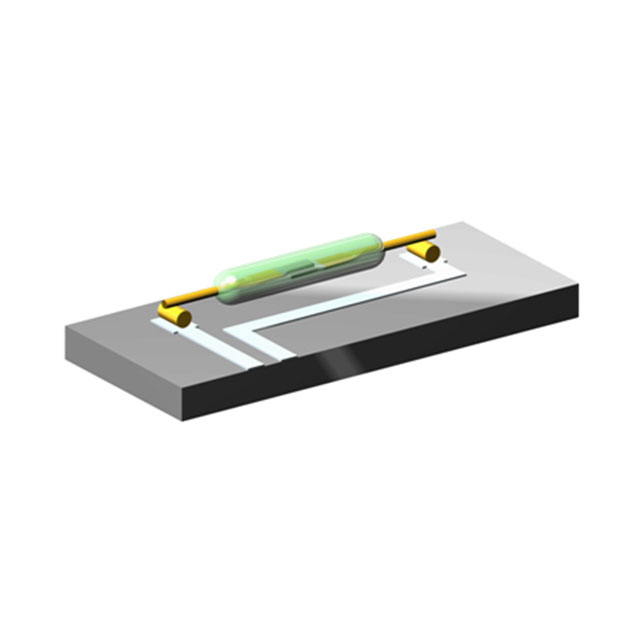

| Description: | SWITCH REED SPST-NO 700MA 130V |
| Manufacturer | PIC GmbH |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PIC GmbH" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 0.640" (16.26mm) |
| Power - Rated | 10W |
| Current - Switching | 700mA (AC/DC) |
| Voltage - Switching DC | 180 V |
| Operate Time | 0.5 ms |
| Release Time | 0.3 ms |
| Size - Body | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) |
| Operate Range | 15 ~ 20AT |
| Release Range | 4AT |
| Current - Carry | 1A (AC/DC) |
| Voltage - Switching AC | 130 V |
|
