| Part number: | PMC-1001THY |

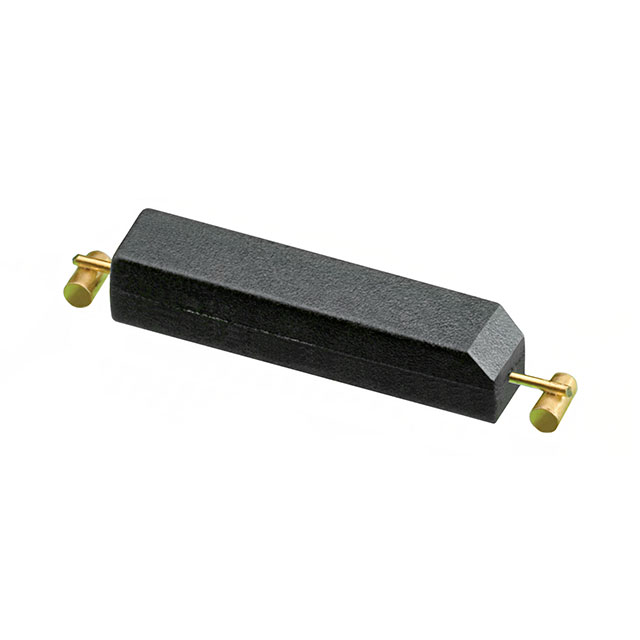

| Description: | SWITCH REED SPST-NC 700MA 130V |
| Manufacturer | PIC GmbH |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PIC GmbH" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NC |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 0.772" (19.60mm) |
| Power - Rated | 10W |
| Current - Switching | 700mA (AC/DC) |
| Voltage - Switching DC | 180 V |
| Operate Time | 0.5 ms |
| Release Time | 0.3 ms |
| Size - Body | 0.575" L x 0.118" W x 0.138" H (14.60mm x 3.00mm x 3.50mm) |
| Operate Range | 10 ~ 50AT |
| Release Range | 5AT |
| Current - Carry | 1A (AC/DC) |
| Voltage - Switching AC | 130 V |
| Capacitance | 0.5 pF |
|
