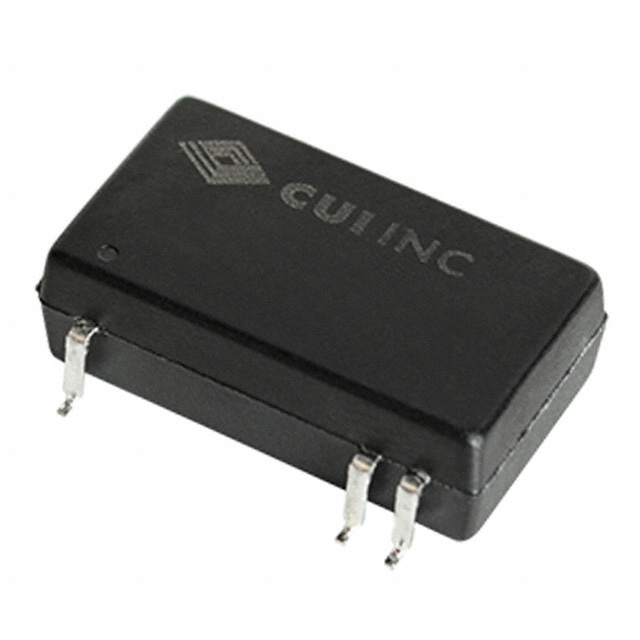

| Part number: | PQM3-D12-S5-M |
| Description: | DC DC CONVERTER 5V 3W |
| Manufacturer | CUI Inc |
| Encapsulation | Tube |
| Quantity | 21 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "CUI Inc" |
| Features | SCP |
| Package / Case | 16-SMD Module, 6 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 18V |
| Approval Agency | EN |
| Efficiency | 75% |
| Current - Output (Max) | 600mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 5V |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.5 kV |
| Standard Number | 55024; 55032 Class A |
|
