| Part number: | MDRR-DT-20-25-U |

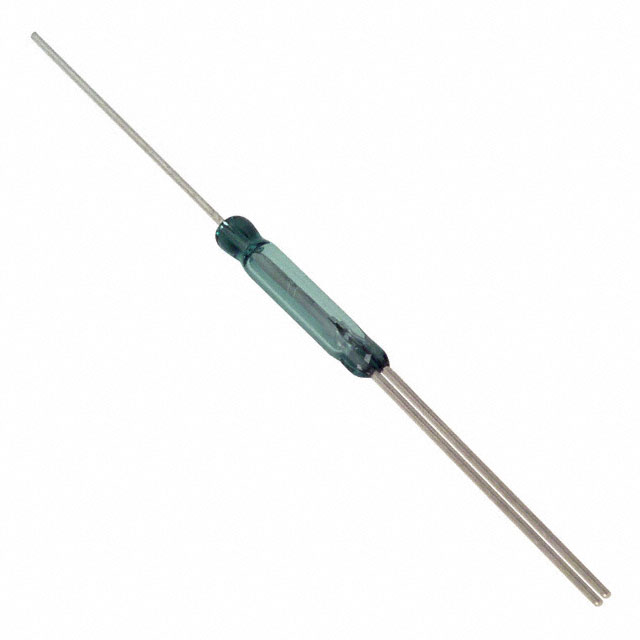

| Description: | SWITCH REED SPDT 180MA 120V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.066" (52.48mm) |
| Power - Rated | 5W |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching DC | 175 V |
| Operate Time | 0.7 ms |
| Release Time | 1 ms |
| Size - Body | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) |
| Operate Range | 20 ~ 25AT |
| Current - Carry | 1.5A (DC) |
| Voltage - Switching AC | 120 V |
| Capacitance | 1 pF |
|
