| Part number: | MLRR-4-22-38 |

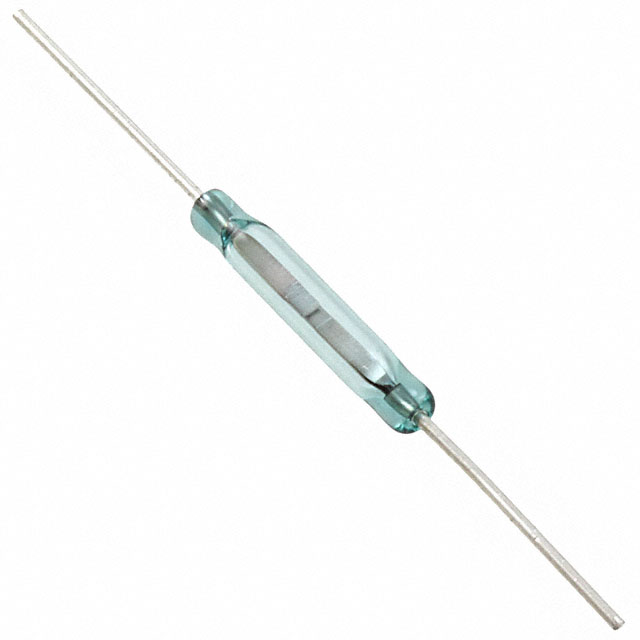

| Description: | SWITCH REED SPST-NO 700MA 140V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 1.590" (40.39mm) |
| Power - Rated | 20W |
| Current - Switching | 700mA (AC), 1A (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Size - Body | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) |
| Operate Range | 22 ~ 38AT |
| Current - Carry | 1A (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.4 pF |
|
