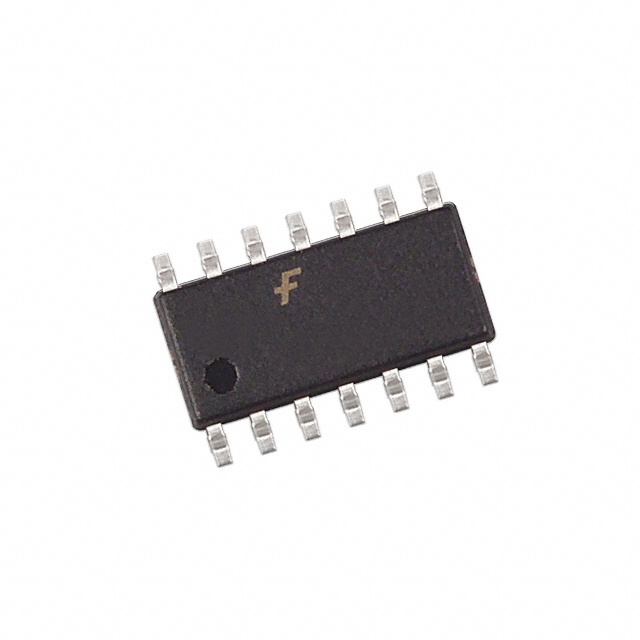

| Part number: | 74AC20SJX |
| Description: | IC GATE NAND 2CH 4-INP 14SOP |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 24mA, 24mA |
| Number of Inputs | 4 |
| Supplier Device Package | 14-SOP |
| Input Logic Level - High | 2.1V ~ 3.85V |
| Input Logic Level - Low | 0.9V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 2 µA |
|
