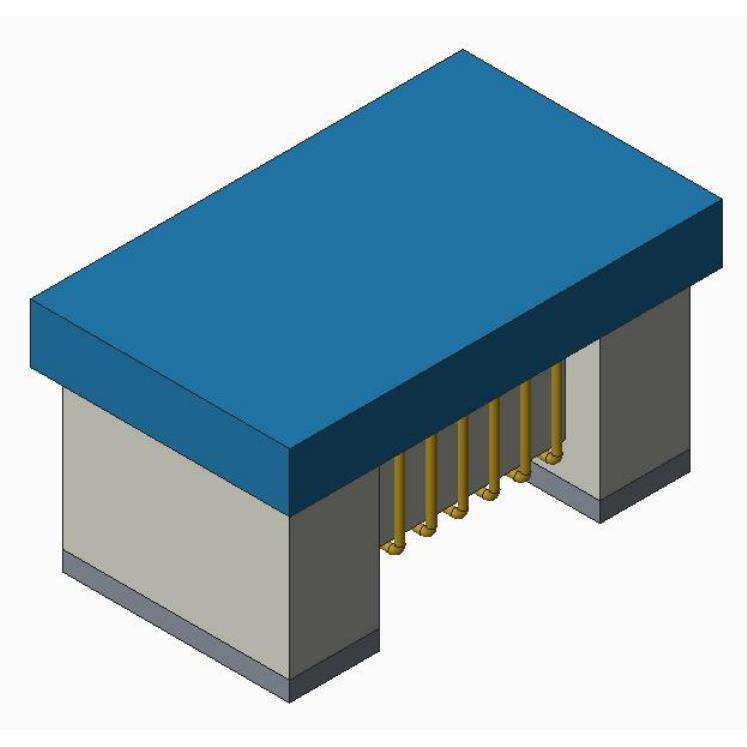

| Part number: | 0603HP-6N2EKTS |
| Description: | FIXED IND 6.2NH 1.7A 36 MOHM SMD |
| Manufacturer | Delta Electronics/Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Delta Electronics/Components" |
| Tolerance | ±10% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.055" L x 0.045" W (1.40mm x 1.15mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 36mOhm |
| Q @ Freq | 49 @ 250MHz |
| Frequency - Self Resonant | 6GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Inductance | 6.2 nH |
| Current Rating (Amps) | 1.7 A |
|
