| Part number: | 3273566 |

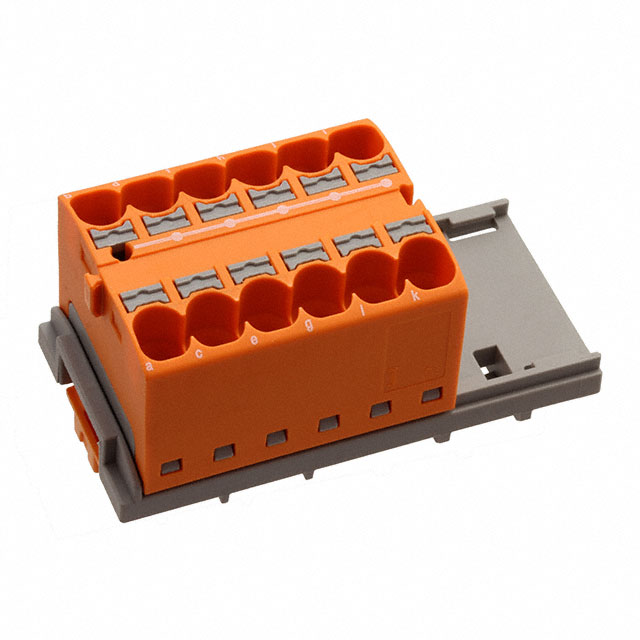

| Description: | DISTRIBUTION BLOCK ORANGE |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 8 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 6 |
| Mounting Type | DIN Rail |
| Length | 2.287" (58.10mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 130°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 28.6mm |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Height (Max) | 1.276" (32.40mm) |
| Housing Color | Orange |
| Stripping Length | 10mm ~ 12mm |
| Current - UL | 32 A |
| Current - IEC | 32 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Number of Positions | 12 |
|
