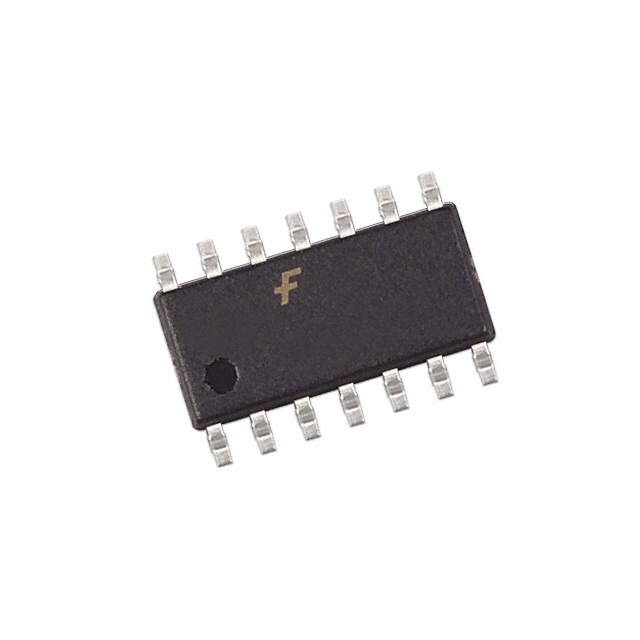

| Part number: | CD4011BCSJX |
| Description: | IC GATE NAND 4CH 2-INP 14SOP |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 15V |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-SOP |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Max Propagation Delay @ V, Max CL | 70ns @ 15V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 1 µA |
|
