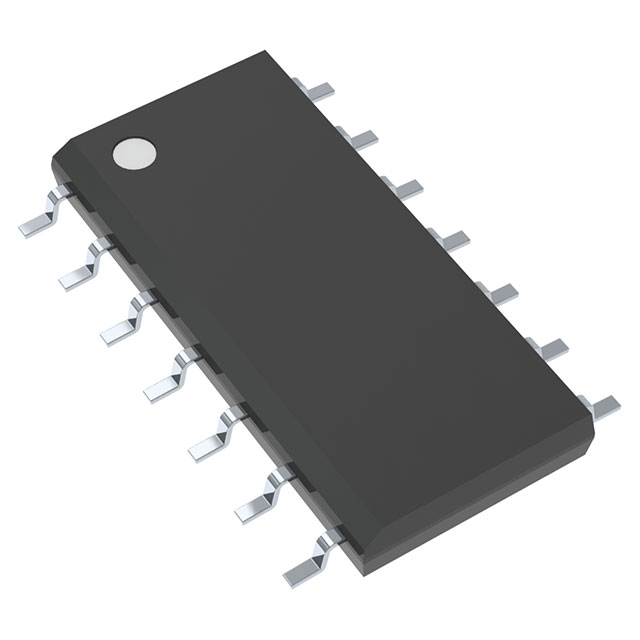

| Part number: | DM74ALS03BM |
| Description: | IC GATE NAND 4CH 2-INP 14SOIC |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 1100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Features | Open Collector |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | -, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-SOIC |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 50ns @ 5V, 50pF |
| Number of Circuits | 4 |
|
