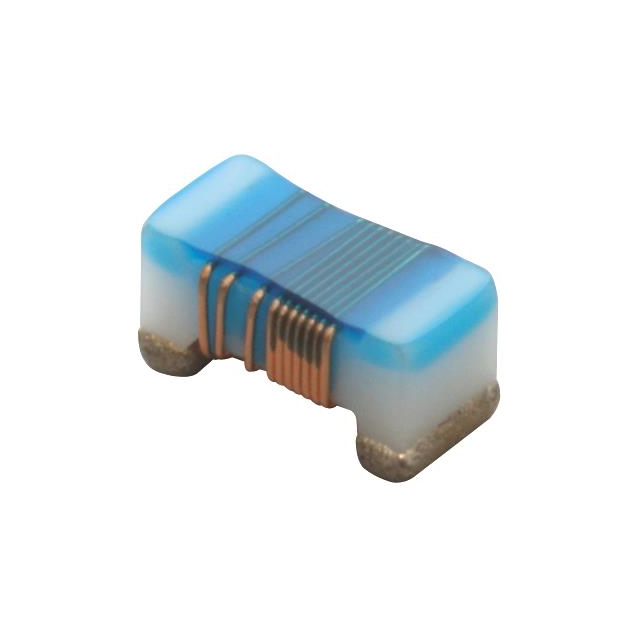

| Part number: | LQW18AS27NG00D |
| Description: | FIXED IND 27NH 600MA 220MOHM SMD |
| Manufacturer | TOKO / Murata |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKO / Murata" |
| Tolerance | ±2% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 40 @ 250MHz |
| Frequency - Self Resonant | 2.8GHz |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 27 nH |
| Current Rating (Amps) | 600 mA |
|
