| Part number: | 31065104-S |

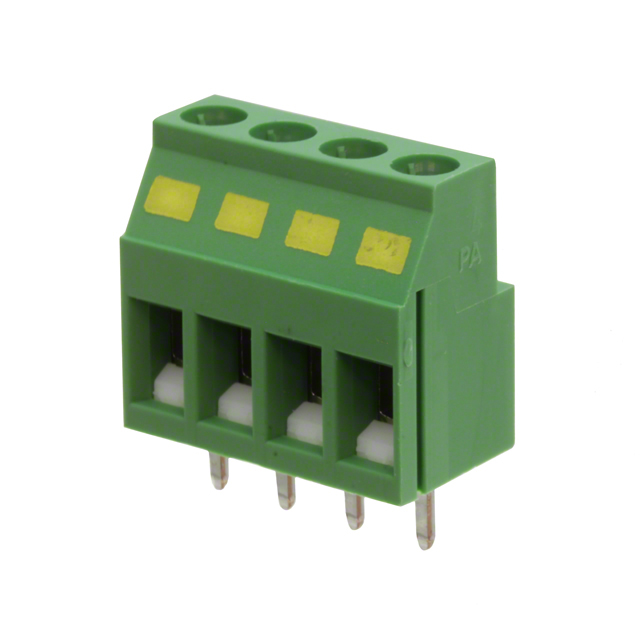

| Description: | SCREW TYPE, TERMINAL BLOCK, RIGH |
| Manufacturer | RIA Connect / METZ CONNECT |
| Encapsulation | Bulk |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RIA Connect / METZ CONNECT" |
| Features | Interlocking (Side) |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 12-22 AWG |
| Pitch | 0.197" (5.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 4 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Screw Material - Plating | Zinc Plated |
| Torque - Screw | 0.68 Nm (6 Lb-In) |
| Screw Thread | M3 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Current | 20 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
