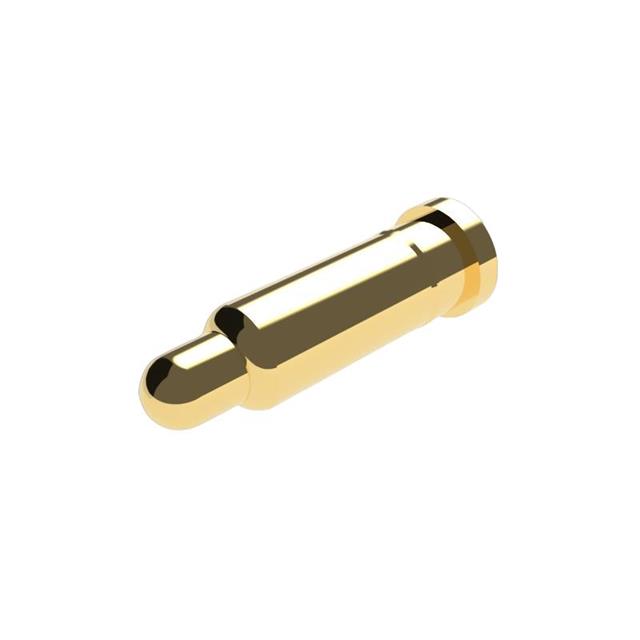

| Part number: | PH-MVF-4355 |
| Description: | CONTACT SPRING LOADED SMD GOLD |
| Manufacturer | Adam Tech |
| Encapsulation | Bag |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Adam Tech" |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Material | Brass |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.217" (5.51mm) |
| Recommended Working Height | 0.177" (4.50mm) |
| Minimum Working Height | 0.161" (4.10mm) |
| Pad Layout Dimension | Circular - 0.071" (1.80mm) |
| Plunger Size | 0.039" (1.00mm) Dia |
| Operating Force - Initial | 70gf |
|
