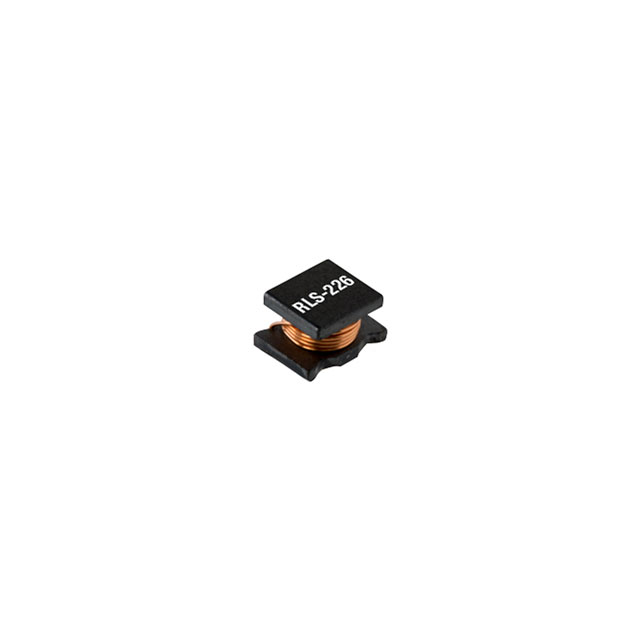

| Part number: | RLS-226 |
| Description: | FIXED IND 22UH 630MA 700MOHM SMD |
| Manufacturer | RECOM Power |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RECOM Power" |
| Tolerance | ±10% |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 700mOhm Max |
| Current - Saturation (Isat) | 1A |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 630 mA |
|
