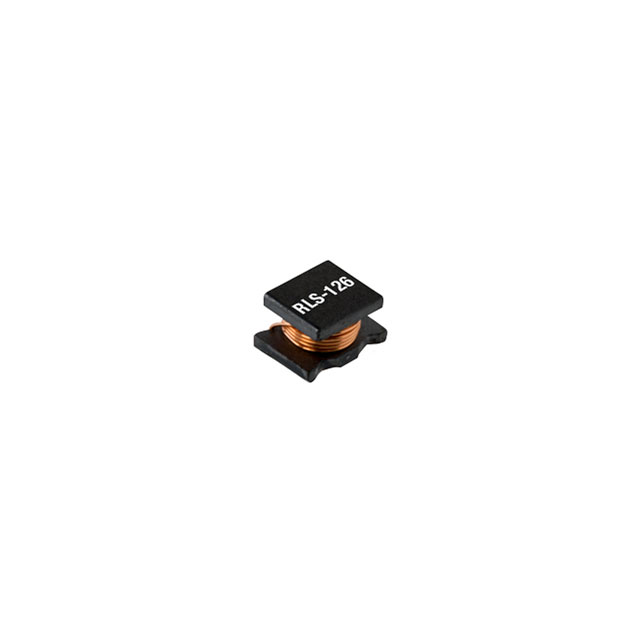

| Part number: | RLS-126-R |
| Description: | FIXED IND 12UH 800MA 420MOHM SMD |
| Manufacturer | RECOM Power |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RECOM Power" |
| Tolerance | ±20% |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 420mOhm Max |
| Current - Saturation (Isat) | 1.4A |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Inductance | 12 µH |
| Current Rating (Amps) | 800 mA |
|
