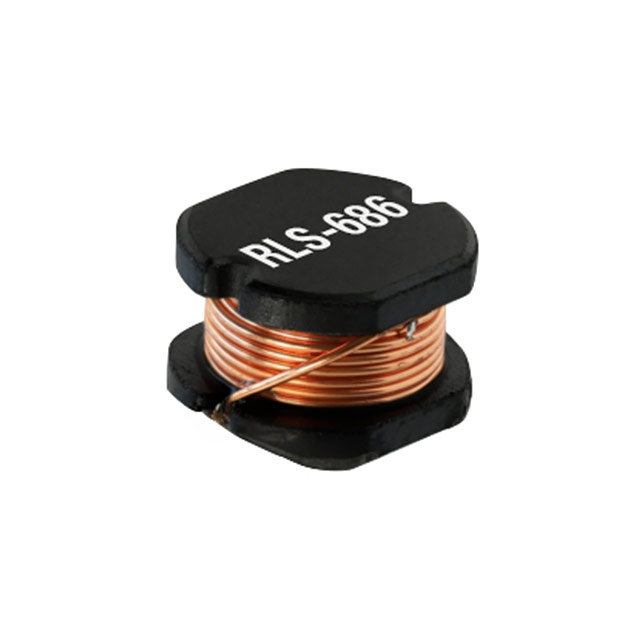

| Part number: | RLS-686-R |
| Description: | FIXED IND 68UH 990MA 280MOHM SMD |
| Manufacturer | RECOM Power |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RECOM Power" |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 105°C |
| DC Resistance (DCR) | 280mOhm Max |
| Current - Saturation (Isat) | 1.05A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Inductance | 68 µH |
| Current Rating (Amps) | 990 mA |
|
